Operations

Cut

Strip

Crimp

Done

Correct

The contacts are in proper alignment and ready to push in. Listen for a click on each one to make sure they are fully inserted.

Wrong

Contacts are up side down in relation to the housings and the colors are backwards.

Wrong

Contacts are at an angle and will be difficult or impossible to insert.

Model Railways

Radio Control

Data Centers

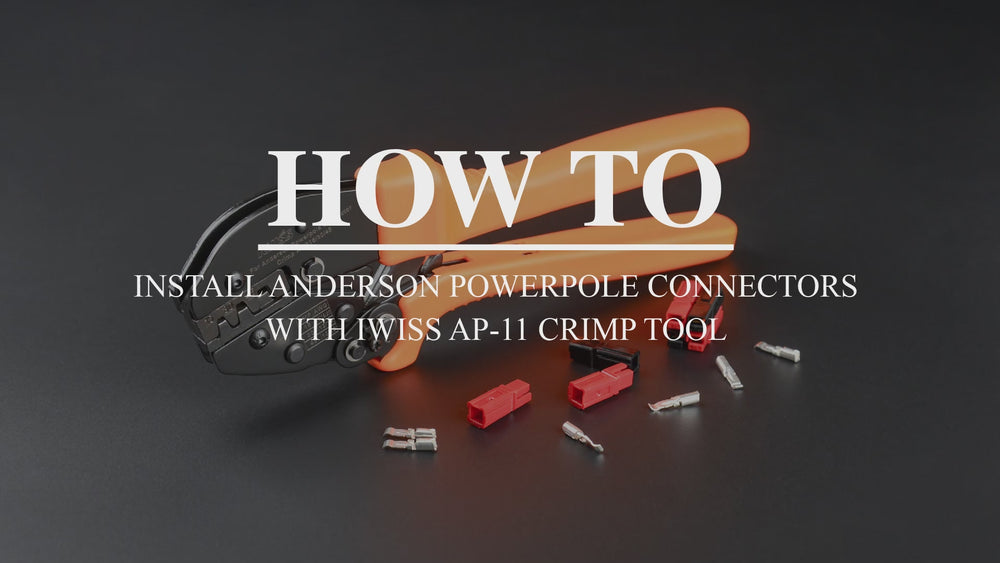

Crimp Tool for 15, 30 and 45 AMP Power Connectors

iCrimp AP-11 crimping tool is designed to provide a positive crimp for quick disconnect 15, 30 & 45 amp contacts in a single tool. Crimping is a quick and effective way of making reliable DC connections.

• Crimps all three sizes of contacts; 15, 30 and 45 amp
• Built-in contact positioner that holds the contact during crimping
• Ratchet mechanism assures proper crimps every time
• Far faster and better than soldering
• Provides the highest strength and the lowest resistance connections possible
• High Contact retention force
• Ground for amateur radio, automotive/RV/caravan, winches, model railroads, robotics

Die Set Configurations

• 15 Amp Cavity: For 16, 18 and 20 gauge wire
• 30 Amp Cavity: For 12, 14 gauge wire
• 45 Amp Cavity: For 10 gauge wire

The contact size corresponds to the position marking on the die. The 15 amp contact goes into the 15 amp position, the 30 amp into the 30 position, and 45 amp into the 45 position.
