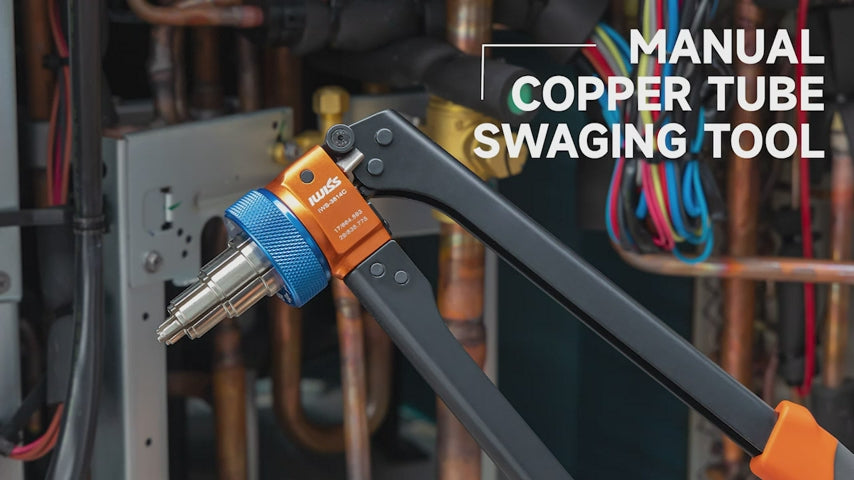

Manual Copper Swaging Tool

For Heating, Cooling, Ventilation Systems & Refrigerators

IWS-3814C high effeciency swaging tool kit makes it easy for the professional tradesman to expand tubing easily and precisely without splitting. With a debrurring tool and tubing cutter included, this kit contains everything you need to properly swage, makes it ideal for HVAC/R instillation, maintenance, and repairs.

Faster Copper Tube Swaging

Cutting

Prepare the copper tubing for installation by cutting the tube to the proper length using a tubing cutter

Deburring

Next, use the deburring tool to remove the burr from the inside of the copper tubing

Swaging

• Select the expander head
• Swage tubing end by squeezing tool handles for three times

Brazing

The swaged end joint is fabricated through a cold deformation process to the outer pipe that is then welded to the inner pipe

Bulk Swaging

Boiler Room

Water Piping

Radiant Heating Controller

Copper Tube Swaging Tool Kit

IWS-3814C copper tubing expanding tool kit provides a variety of tools for your copper tube project. Use to cut, remove burrs from copper tube as well as swage. It features auto rotate capability for expansion due to a stable ratcheting mechanism. Users can simply hold the tubing and tool in place while separating and closing the handles to expand the tubing. Learning how to use a swaging tool is effective for shaping a relatively soft metal such as copper, and can give you more control over your home plumbing and other welding projects.

Tips for High Quality Swaging:

• Only swage soft copper or hard copper that has been pre-annealed by heating
• Attach an expander head that matches the diameter of the tube to the end of the tool
• Fit the head into the end of the tube and gradually squeeze the handles
• Release when the end of the tube is fully swaged
