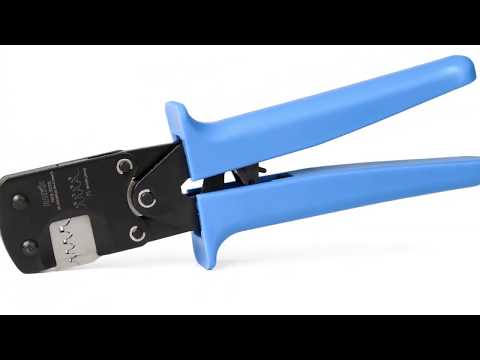

IWS-3220M Micro Connector Pin Crimping Tool 0.03-0.52mm² 32-20AWG Ratcheting Crimper

IWS-3220M Micro Connector Pin Crimping Tool for AWG32-20 D-Sub, Open Barrel Terminal suits Molex, JST, JAE

by iCrimp Tools
$29.99
$29.99 - $29.99
$29.99
$23.99
$23.99 - $23.99
$23.99

About this item

  • Ideal for micro connector pins with capacity 0.03-0.52mm² 32-20AWG
  • Typical parallel crimping type ensures stability and power equality and improves 30% of the crimping-tightness
  • Double-layer Wire Electrical discharge machining(EDM). Cutting jaw crimps conductor and insulation sheath simultaneously

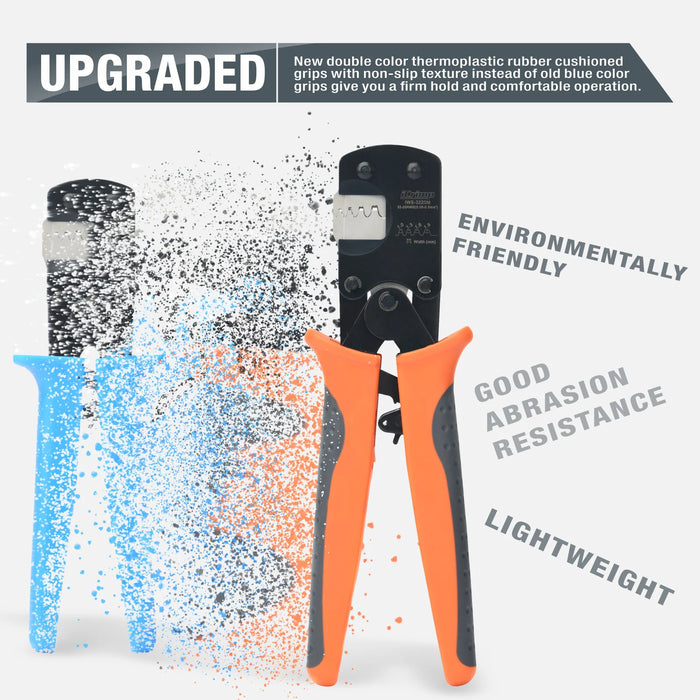

  • Easy to operate with well-made ratchet mechanism and light environment-friendly handle made of TPR
  • Suits Molex CLIK-Mate, Molex PicoBlade, JST SHD, JAM, TYCO D-100,etc

AWG 32-20

Micro Pin Ratchet Crimper

Applicable to: Molex Pico Blade, CLIK-Mate, iGrid, JST SHD, JAM, etc.

Precise Crimping Jaws

Precise Crimping Jaws

Processed with WIRE EDM Cutting to provide phenomenal tolerance and brings more accurate and professional crimps to micro pins. The double-layer jaws crimp the conductor and insulation separately in one step.

for contact size 12,14,16

Parallel Crimping Force

satisfies the particularly high standards of micro pins, ensures stability and power equality for pins and improves 30% in tightness.

Parallel Crimping Force

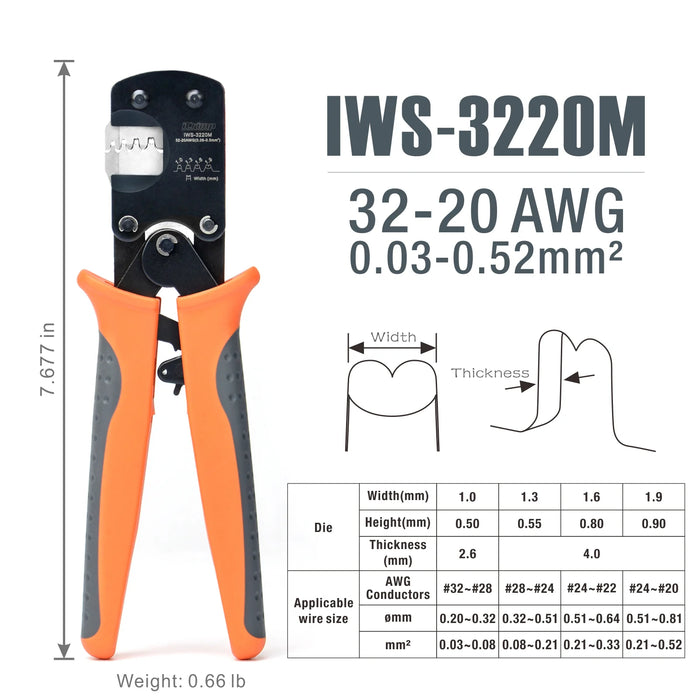

Jaw Parameters

Jaw Parameters

4 precise machined cavities, ideal for narrow-pitch connector pins

Precise crimp

Precise Crimp

Consistently high crimping quality due to the precise jaws and ratchet mechanism

ratcheting-crimping-tool-2.jpg__PID:72a50a1a-c256-4f40-880e-5d43227b5889
ratcheting-crimping-tool-4.jpg__PID:0f96d2eb-6f61-4f31-88de-816dd7d096ca

Why IWISS?

  • Founded in 2008 with production lines for cable and pipe tools
  • 85 global patents for designs and inventions
  • Various products with thousands of positive reviews
  • Best seller in electrical and piping industry
  • More than 12 overseas warehouses across the world
  • Implementing ISO 9001:2015 quality management system and 100% quality control inspection throughout production
  • Over 1.5 million end users employ iCrimp tools as their handy partner
  • Continuous market research in automotive, electrical, electronics and HVAC industries to pursue persistent innovation
  • Designed to conform to DIN, MIL, JIS, ASTM standards
