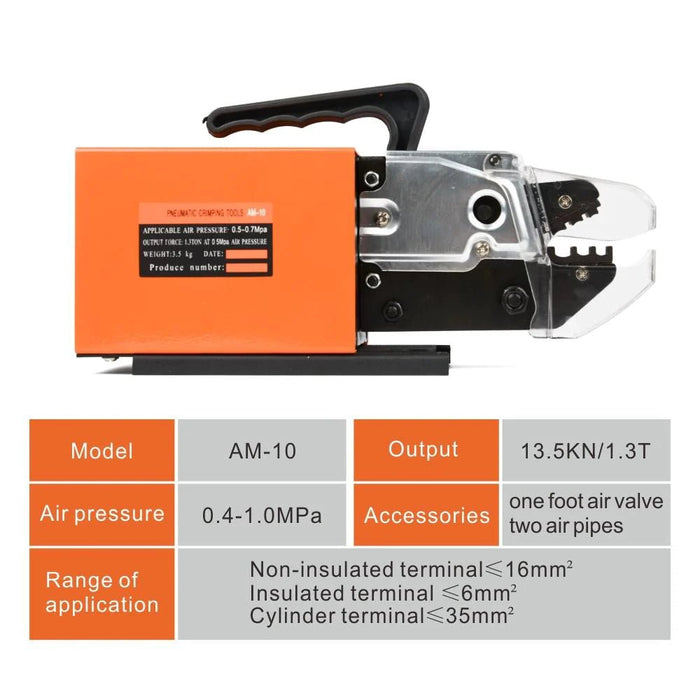

AM-10 Pneumatic Crimping Machine for Wire Terminals Crimping up to 35mm² Max

About this item

• Non-Insulated Terminals ≤16mm², Insulated Terminal ≤6mm², Wire-end ferrules ≤35mm²
• Application air pressure 0.4-1Mpa
• Crimping Force: 13.5KN, weight: 6kg, External Dimension: 260*120*140mm

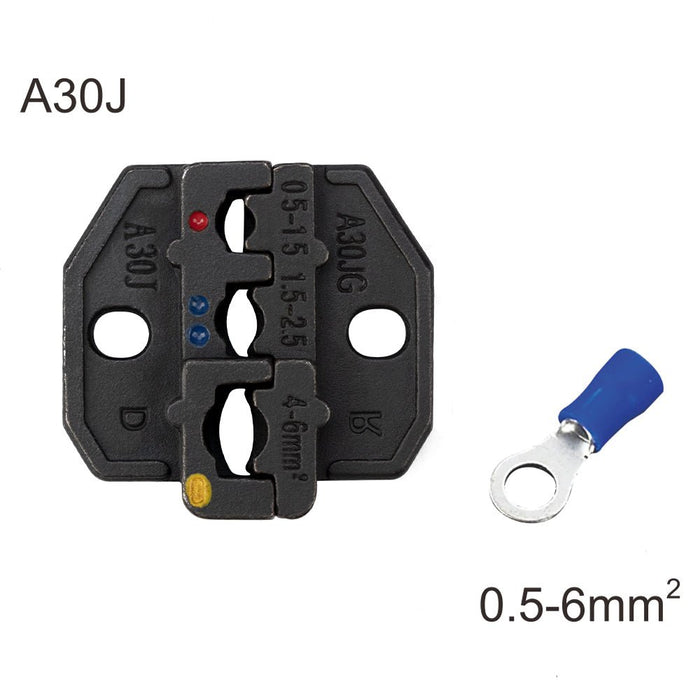

• Default Crimping Jaws: A30J

Details:

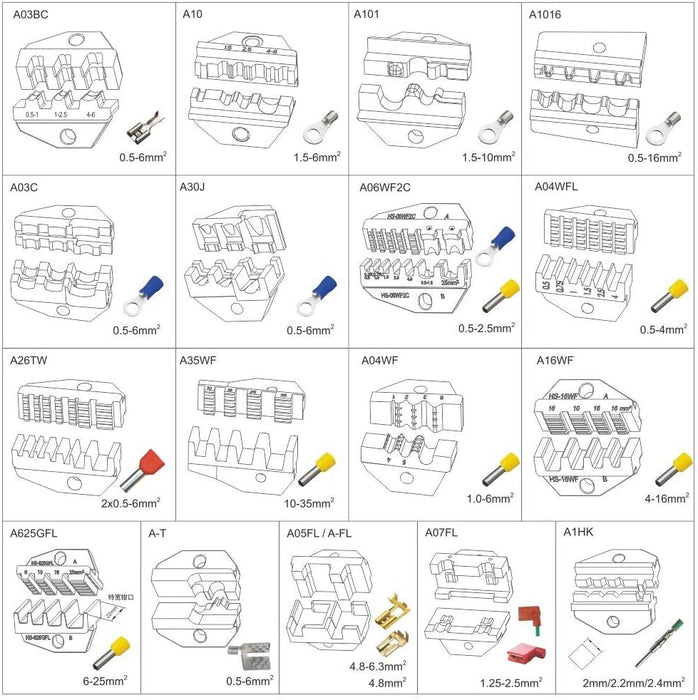

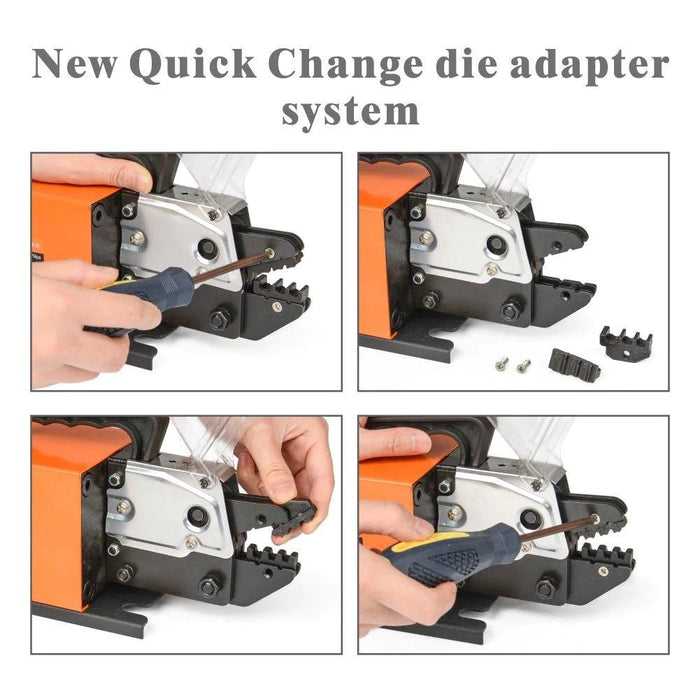

iCrimp AM-10 Pneumatic Crimping Tools for Kinds of Terminals. The machine is driven by dual-action normal cylinder. Which has advantages of high efficiency and quality in crimping force and speed. The machine is fit for crimping many kinds of terminals. The die sets are interchangeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.

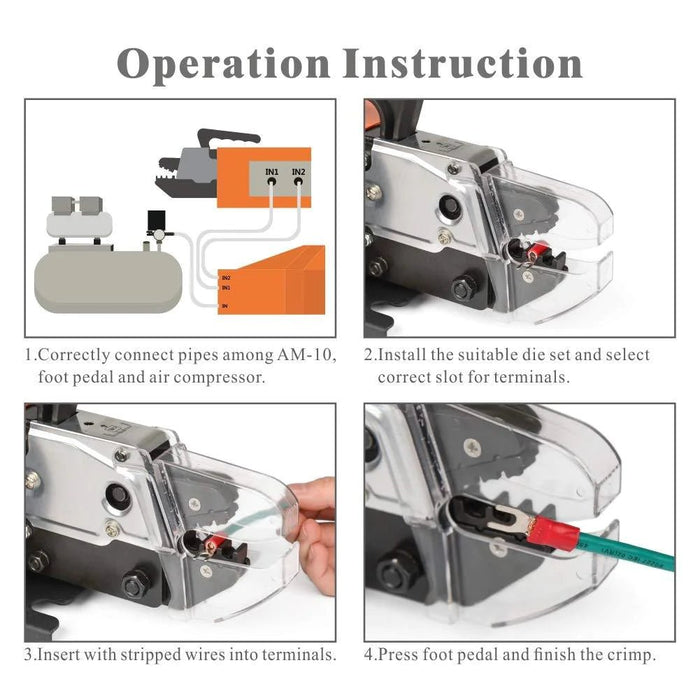

Accessories: one jaw, one foot air valve, two air pipes.
